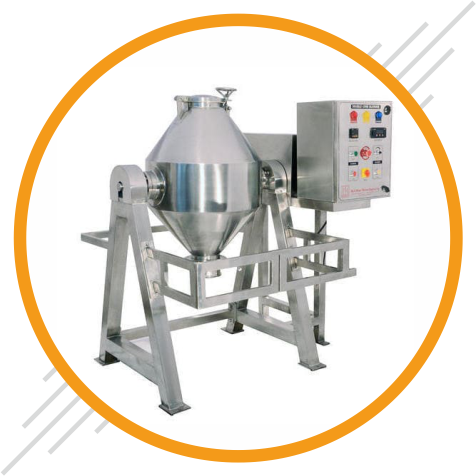

DOUBLE CONE BLENDER
- Homogeneous mixing of granules and dry powders with an efficient and versatile blender.
- Double Cone Blenders can be furnished with a PLC controlled, automated drum loading system.
- With one full revolution of the blender, the entire contents of a product container can be transferred into the blender and back into drums after mixing, in a dust-free operation.
- O Degree position for discharge is provided
KEY FEATURES
- PLC controlled, fully automatic load and discharge functions.
- Butterfly discharge valve is clamped to the blender outlet for quick disassembly and with Quick release design for ease of cleaning and maintenance. Valve flange seal can be customized to suit the customer’s product container
- Optional HMI & PLC Control Panel.
- Bin charging system ensures Dust free closed system for Charging and Discharging of Product.
- CE Certified.
- 21 CFR Part 11 compliant controls
- Mechanical rail provided on the unit. Gate footprint to suit the turning radius of the blender body.Single railing in front which opens by lifting, with Limit switch/Safety switch interlock.
- Slow speed Blender with Gentle blending of Dry granule.
- Optional in built in Vacuum design. No external PTS required.
- cGMP design for ease of cleaning.
- Industrial PC’s SCADA Based
- Explosion proof / Flame Proof
DOUBLE CONE BLENDER
| MODEL |
Gross Capacity in (Ltrs)
|
Working Capacity in (Ltrs)
|
Motor HP |
| MM OCB-5 |
5 |
4 |
1 |
| MM OCB-10 |
10 |
8 |
1 |
| MM OCB-15 |
15 |
12 |
1 |
| MM OCB-25 |
25 |
20 |
1 |
| MM OCB-50 |
50 |
40 |
1.5 |
| MM OCB-75 |
75 |
60 |
2 |
| MM OCB-100 |
100 |
80 |
2 |
| MM OCB-150 |
150 |
120 |
2 |
| MM OCB-250 |
250 |
200 |
2 |
| MM OCB-400 |
400 |
320 |
3 |
| MM OCB-500 |
500 |
400 |
3 |
| MM OCB-750 |
750 |
600 |
3 |
| MM OCB-1000 |
1000 |
800 |
5 |
| MM OCB-1250 |
1250 |
1000 |
5 |
| MM OCB-1500 |
1500 |
1200 |
7.5 |
| MM OCB-2000 |
2000 |
1600 |
10 |
| MM OCB-3000 |
3000 |
2400 |
10 |
| MM OCB-5000 |
5000 |
4000 |
15 |
